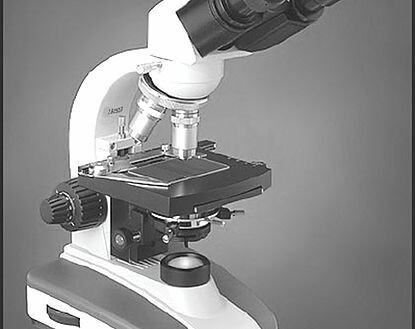

2011Y biological Microscope

45mm DIN Achromatic Objectives:
4X, 10X, 40X(S), 60X(S)

Wide Field Plane-Scope Eyepiece
WF10X

Total Magnification – 40X-600X
(Optional:WF16X Eyepiece gives
maximum magnification of 960X
without oil)

Articulated Free Trinocular Head
Interpupillary Distance: 55-75mm 30º
Inclined 360º Rotatable

Double Layer Mechanical Stage
125X125mm, Moving Range X-Y
60X40mm

ABBE Condenser: N.A. 1.252-30mm
Iris Diaphragm And 32 Filter
Coaxial Coarse And Fine Focusing
Adjustable Mechanism 14mm
Built-in Adjustable Brightness LED
Lamp 1W;

Net Weight/Set: 4.3kg
